Matplotlib
import packages
import numpy as np
import matplotlib.pyplot as plt
from matplotlib import cycler
from ploting_func import *
Set color list (optional)
cycler_colors = plt.cycler(color=['#FF0000', '#4169E1', '#9988DD','#EECC55', '#88BB44', '#FFBBBB'])
plt.rc('axes', facecolor='black', edgecolor='b',prop_cycle=cycler_colors)
# or: plt.style.use('ggplot')

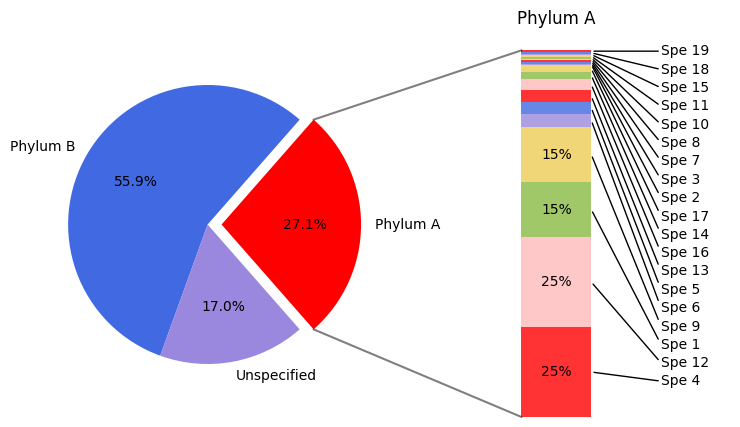

bar_of_pie_plot
## Example Input
pie_values = [271,560,170]
pie_labels = ['Phylum A', 'Phylum B', 'Unspecified']
bar_values = [33,1,1,54,7,8,1,1,33,1,1,54,7,4,1,7,4,1,1]
bar_labels = ['Spe {}'.format(i+1) for i in range(len(bar_values))]
## Plot and save
fig = bar_of_pie_plot(pie_values,pie_labels,bar_values,bar_labels,
figsize=(9, 5),
con_color = [0,0,0], ## R G B
con_linewidth = 1.5,
anno_y_min_gap = 0.05, ## prevent label text overlap, adjust on y axis & decide if to show bar_label
sort_bar_values = True
)

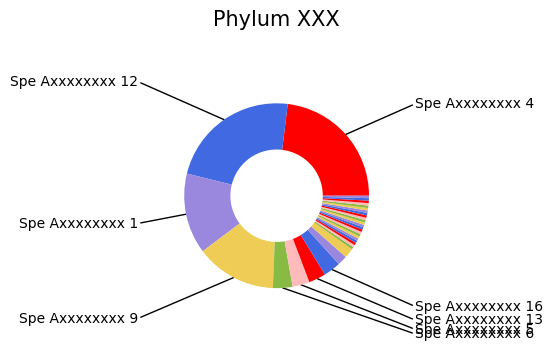

donut_pie_plot
## Example Input
pie_values = [33,1,1,54,7,8,1,1,33,1,1,54,7,4,1,7,4,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1]
pie_labels = ['Spe Axxxxxxxx {}'.format(i+1) for i in range(len(pie_values))]
title_text = 'Phylum XXX'
## Plot and save
fig = donut_pie_plot(pie_values,pie_labels,title_text,
figsize=(6, 3),
title_fontsize = 15,
startangle = 0,
donut_width = 0.5, ## pie: 1
connectionstyle='arc3', ## bar arc 'angle' angle3 arc3
text_min_ang = 360*0.02,
sort_values = True
)
Heatmap
import seaborn as sns
import pandas as pd
df = pd.DataFrame(np.random.randint(1,100,size = (8, 5)),
columns=['col_{}'.format(i) for i in range(5)],
index=['idx_{}'.format(i) for i in range(8)])
fig = sns.clustermap(df, figsize=(3, 3))
plt.savefig('img/heatmap.png',bbox_inches='tight')

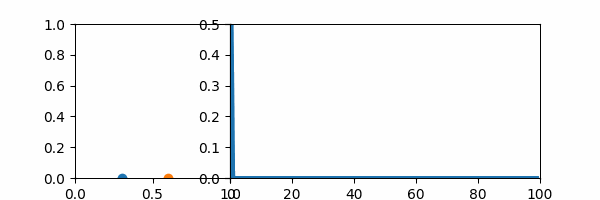

Animation
示例一
from matplotlib.animation import FuncAnimation
from scipy.stats import binom
fig, (ax1, ax2) = plt.subplots(
ncols=2,
sharey=False,
figsize=(6, 2),
gridspec_kw=dict(width_ratios=[1, 2], wspace=0),
)
## Init objects to be updated at each frame
### if Init with values, x/ylim will be calculated based on that
point, = ax1.plot([], [], marker='o')
point_line, = ax1.plot([], [], marker='o')
line_pmf, = ax2.plot([], [], lw=3)
## optional
def animate_init():
point.set_data(0,0)
point_line.set_data([0],[0])
line_pmf.set_data([k for k in range(100)], [0 for k in range(100)])
ax1.set_xlim(0,1)
ax1.set_ylim(0,1)
ax2.set_ylim(0,0.5)
ax2.set_xlim(0,100)
## what to plot at each frame; i:value of frames
## .set_data([],[]) for ax.plots
## .set_text('')/.set_position((x,y)) for ax.text
def animate_func(i):
x = [k for k in range(100)]
y_pmf = [binom.pmf(k=k,n=100,p=i) for k in x]
point.set_data(0.3,i)
point_line.set_data(0.6,[ii*0.01 for ii in range(101)if ii*0.01<=i])
line_pmf.set_data(x,y_pmf)
ani = FuncAnimation(fig,
animate_func,
frames=[i*0.01 for i in range(101)],
init_func=animate_init,
fargs=None,
save_count=None,
cache_frame_data=True)
ani.save('img/animation.gif', fps=25, writer='pillow')

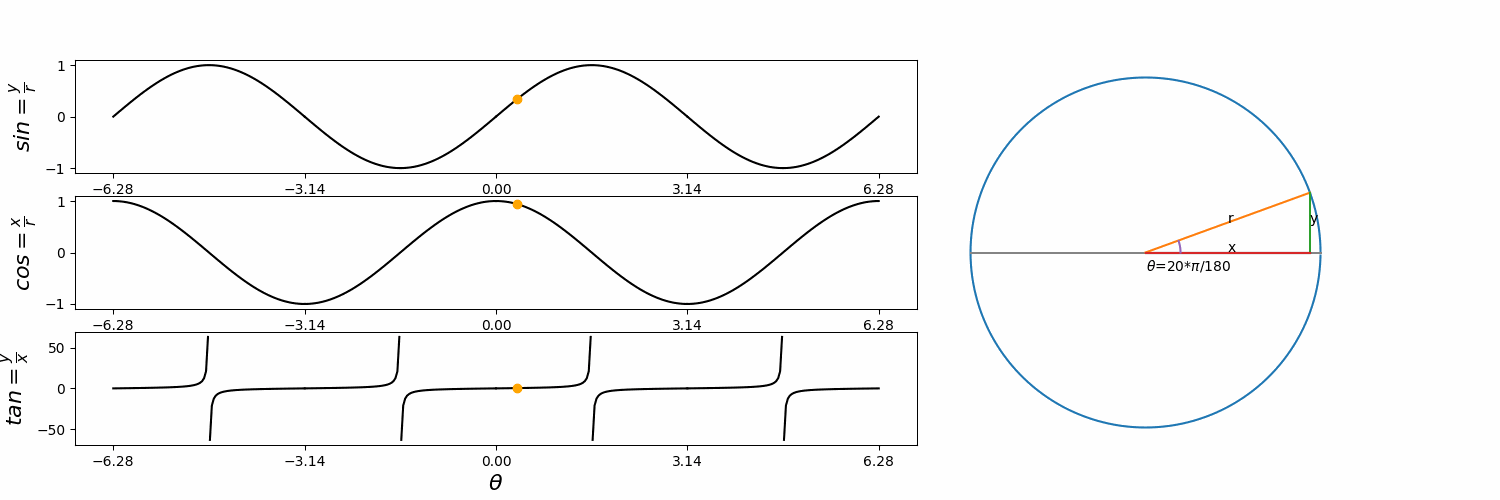

示例二
from matplotlib.animation import FuncAnimation
from matplotlib.gridspec import GridSpec
from matplotlib.ticker import MultipleLocator
import numpy as np
import matplotlib.pyplot as plt
angels = [k for k in range(360)] #0-359
circle_x = np.cos([a*np.pi/180 for a in angels])
circle_y = np.sin([a*np.pi/180 for a in angels])
fig = plt.figure(figsize=(15, 5))
gs1 = GridSpec(nrows=3,ncols=9,left=0.05)
ax11 = fig.add_subplot(gs1[0,:6])
ax12 = fig.add_subplot(gs1[1,:6])
ax13 = fig.add_subplot(gs1[2,:6])
ax2 = fig.add_subplot(gs1[:3,6:])
#### ax1 sin cos tan cot
for j in range(-2,2):
pi_angels = np.linspace(j*np.pi,(j+1)*np.pi,100)
sin_y = np.sin(pi_angels).tolist()
cos_y = np.cos(pi_angels).tolist()
tan_y = np.tan(pi_angels).tolist()
ax11.plot(pi_angels, sin_y,color='black')
ax12.plot(pi_angels, cos_y,color='black')
ax13.plot(pi_angels[:50],tan_y[:50],color='black')
ax13.plot(pi_angels[50:],tan_y[50:],color='black')
ax11.set_ylabel(r'$sin=\frac{y}{r}$',rotation=90,fontdict={'size': 16})
ax12.set_ylabel(r'$cos=\frac{x}{r}$',rotation=90,fontdict={'size': 16})
ax13.set_ylabel(r'$tan=\frac{y}{x}$',rotation=90,fontdict={'size': 16})
ax11.xaxis.set_major_locator(MultipleLocator(np.pi))
ax12.xaxis.set_major_locator(MultipleLocator(np.pi))
ax13.xaxis.set_major_locator(MultipleLocator(np.pi))
sin_point = ax11.plot([], [], marker='o',color='orange')
cos_point = ax12.plot([], [], marker='o',color='orange')
tan_point = ax13.plot([], [], marker='o',color='orange')
### ax2 Circle Animation
ax2.set_aspect(1)
ax2.plot(circle_x,circle_y)
ax2.plot([-1,1],[0,0],color='gray')
r_line = ax2.plot([], [])
y_line = ax2.plot([], [])
x_line = ax2.plot([], [])
inner_circle = ax2.plot([], [])
angel_text = ax2.text(0,-0.1,r'$\theta$')
x_text = ax2.text(0,1,'x')
y_text = ax2.text(1,0,'y')
r_text = ax2.text(1,1,'r')
def animate_init():
animate_func(20)
def animate_func(a):
x = np.cos(a*np.pi/180)
y = np.sin(a*np.pi/180)
### ax1 points
sin_point[0].set_data([a*np.pi/180],[y])
cos_point[0].set_data([a*np.pi/180],[x])
if (a%90!=0):
tan_point[0].set_data([a*np.pi/180],[np.tan(a*np.pi/180)])
### ax2 Circle
r_line[0].set_data([0,x],[0,y])
y_line[0].set_data([x,x],[0,y])
x_line[0].set_data([0,x],[0,0])
inner_circle[0].set_data(circle_x[0:a%360]*0.2,circle_y[0:a%360]*0.2) ### circle_x，circle_y above a is alsp their index
x_text.set_position((0.5*x,0))
y_text.set_position((x,0.5*y))
r_text.set_position((0.5*x,0.5*y))
if (a%10==0):
angel_text.set_text(r'$\theta$={}*$\pi/180$'.format(a))
ani = FuncAnimation(fig,
animate_func,
frames=angels[20:],
init_func=animate_init,
fargs=None,
save_count=None,
cache_frame_data=True)
ax2.axis('off')
ax13.set_xlabel(r'$\theta$',rotation=0,fontdict={'size': 16})
ani.save('animation_sin.gif', fps=25, writer='pillow')
